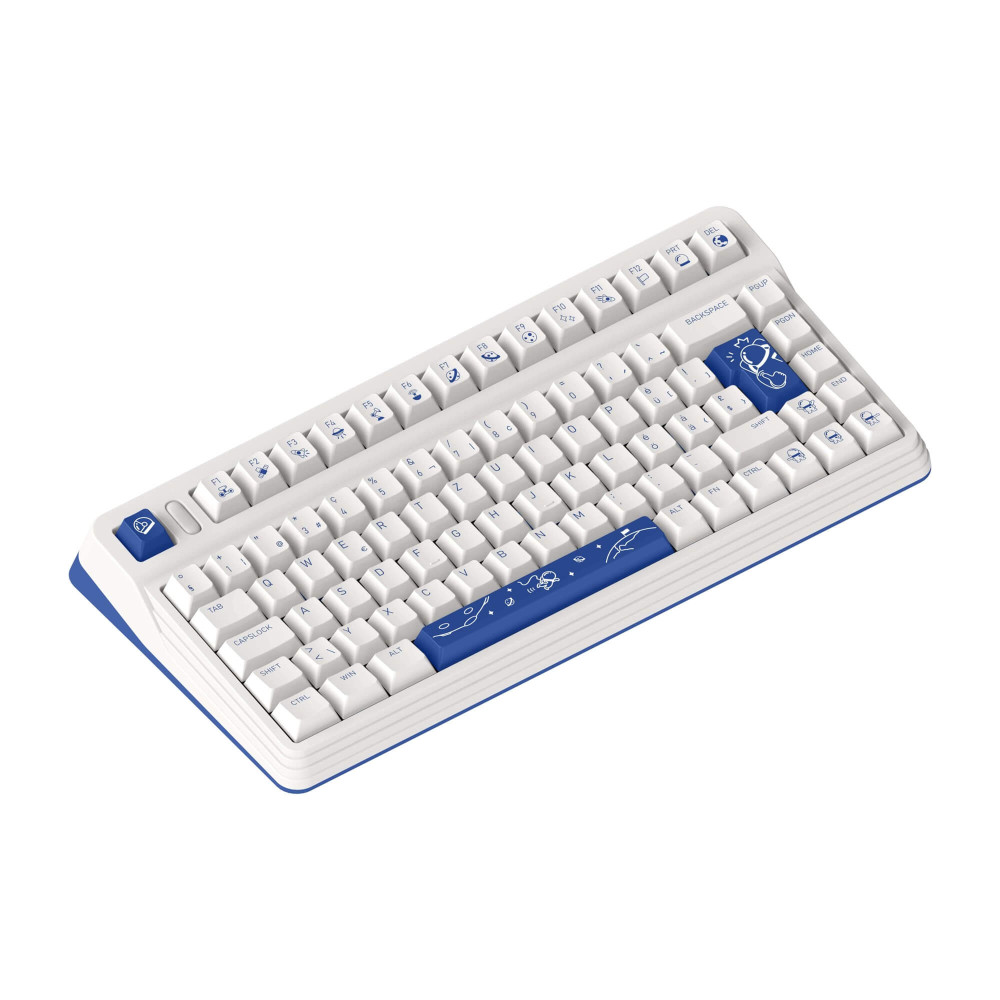

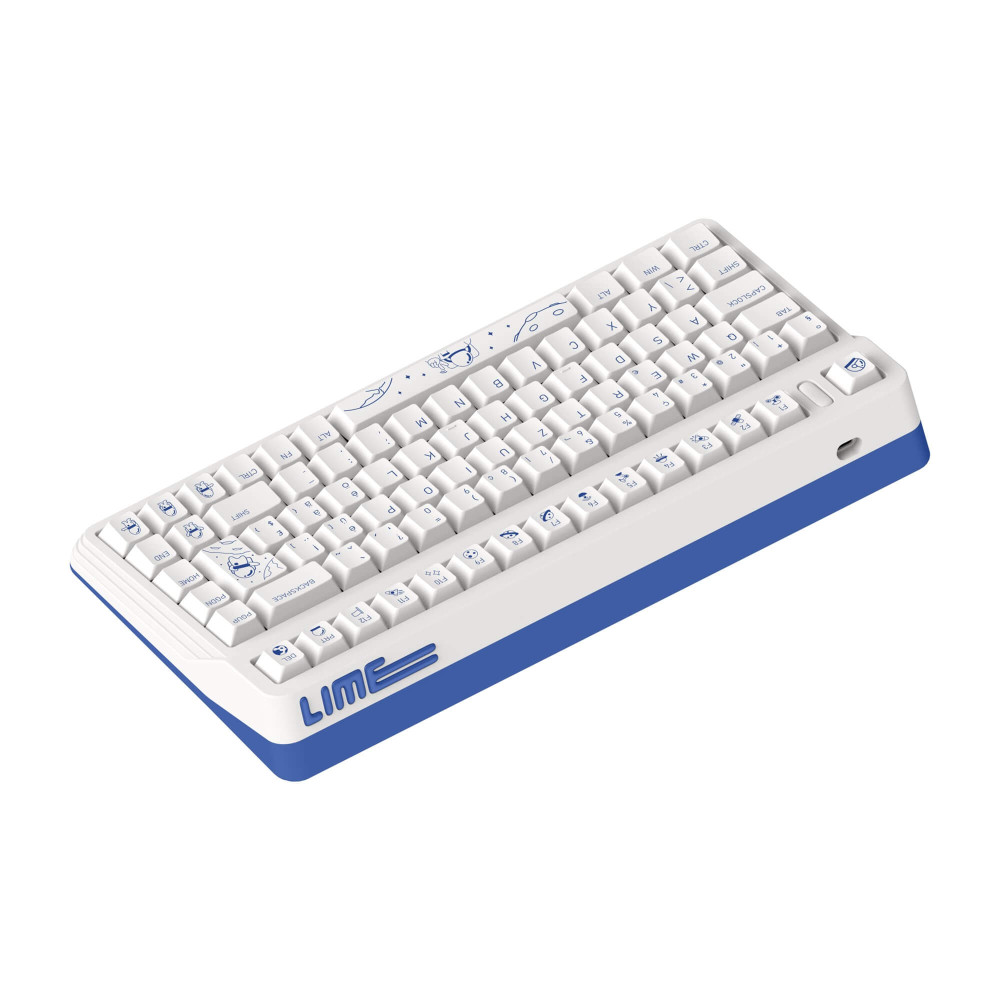

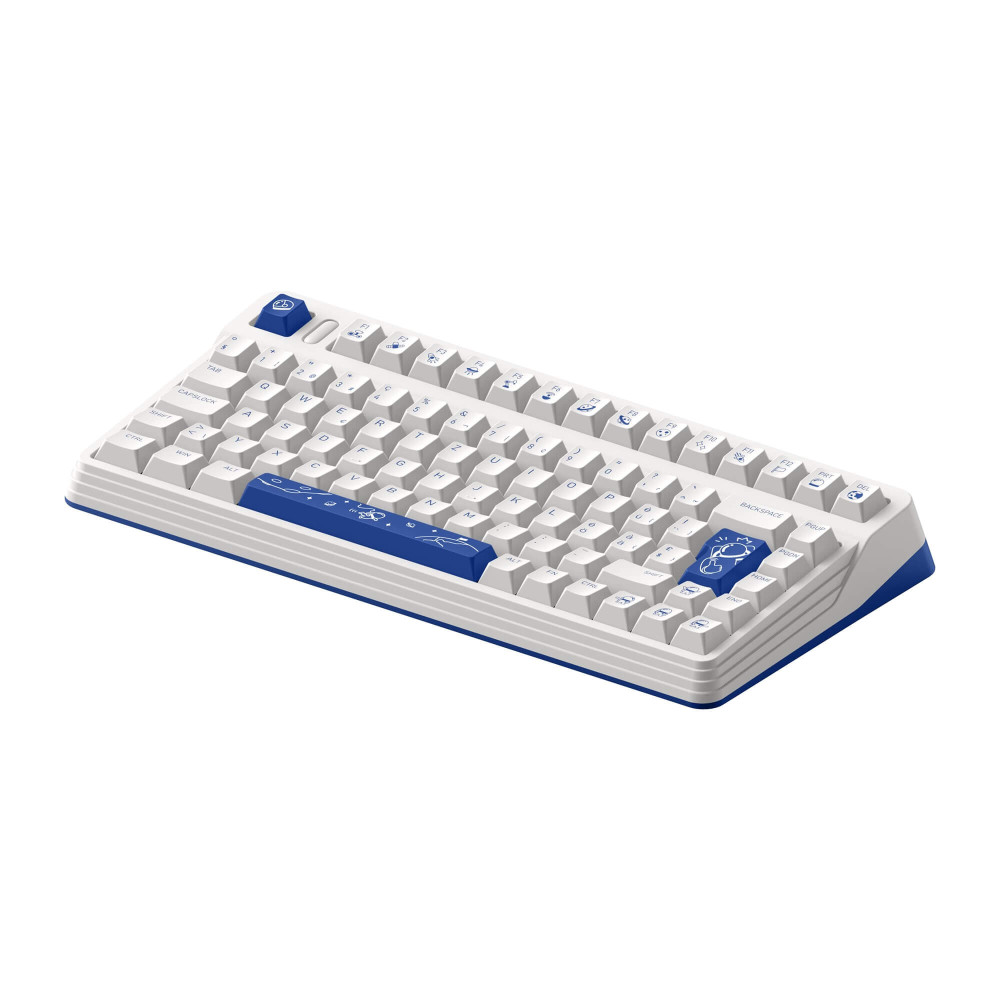

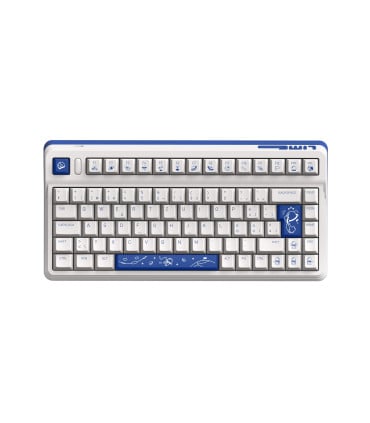

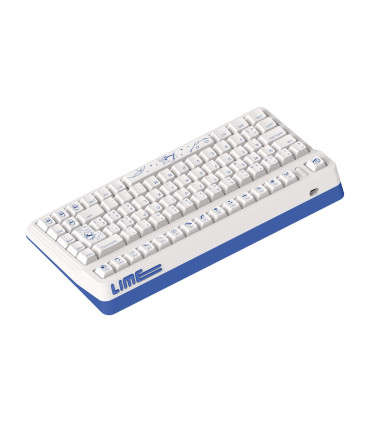

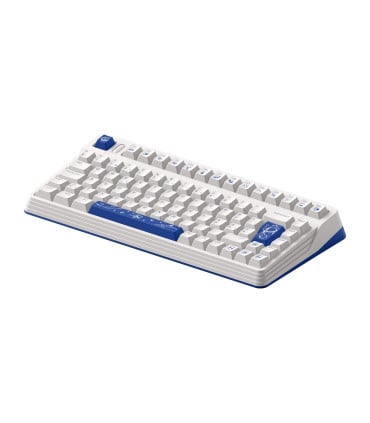

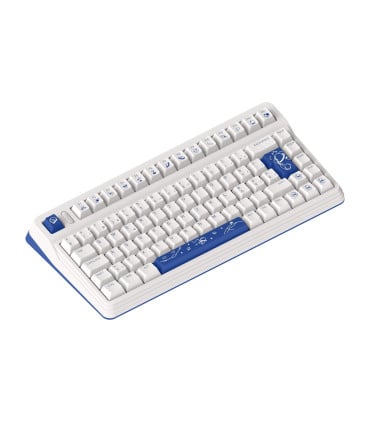

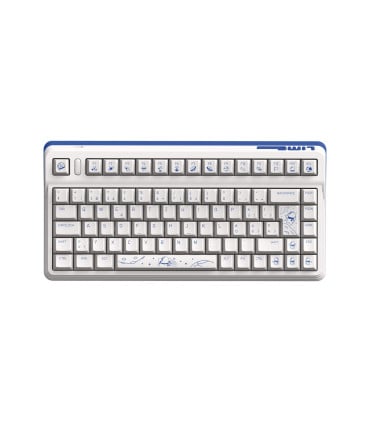

Design and construction of the IQUNIX L80 Cosmic Traveller
The IQUNIX L80 is one of the most popular keyboards from IQUNIX. The latest version, the L80 Cosmic Traveler comes in a beautiful space motif design. There are also various upgrades under the keys, so the RGB lighting and the damping concept have been completely renewed.
Functions & Features

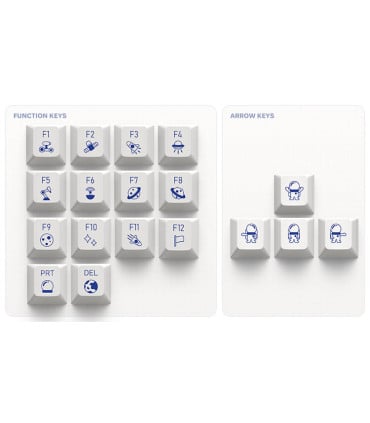

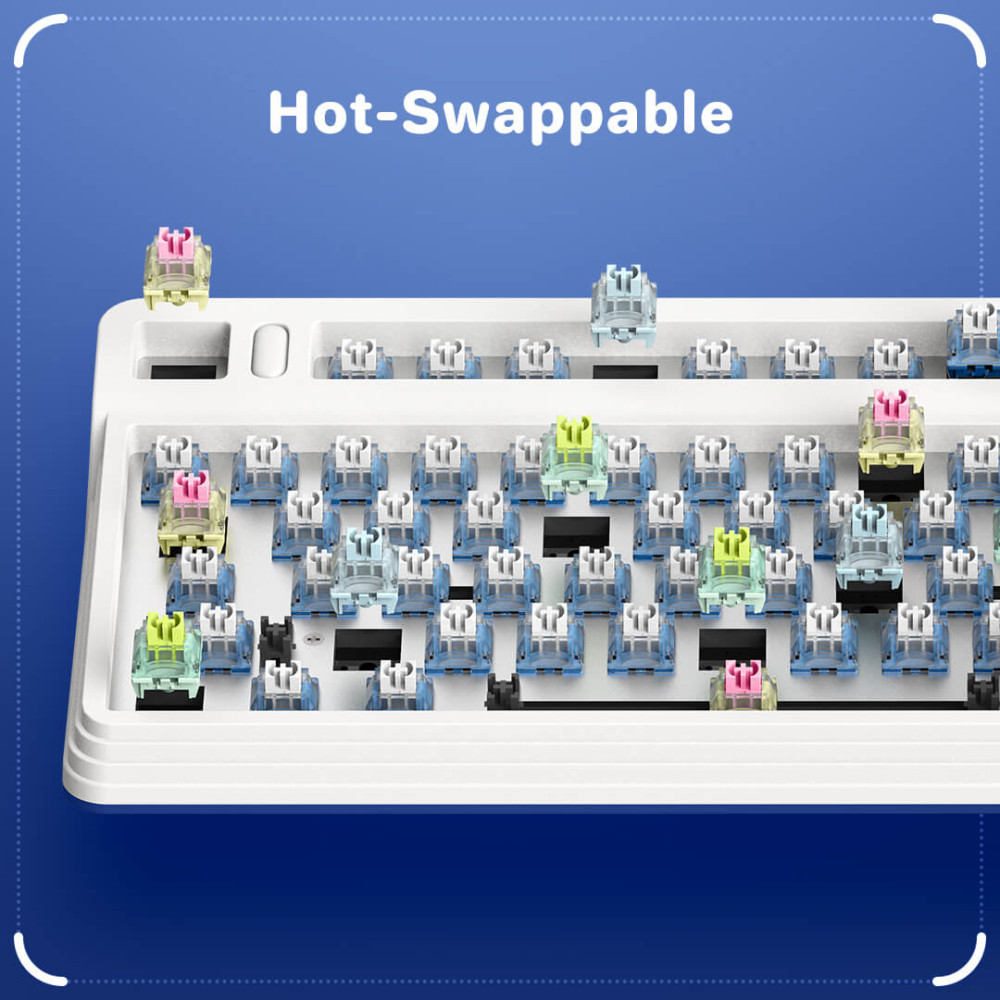

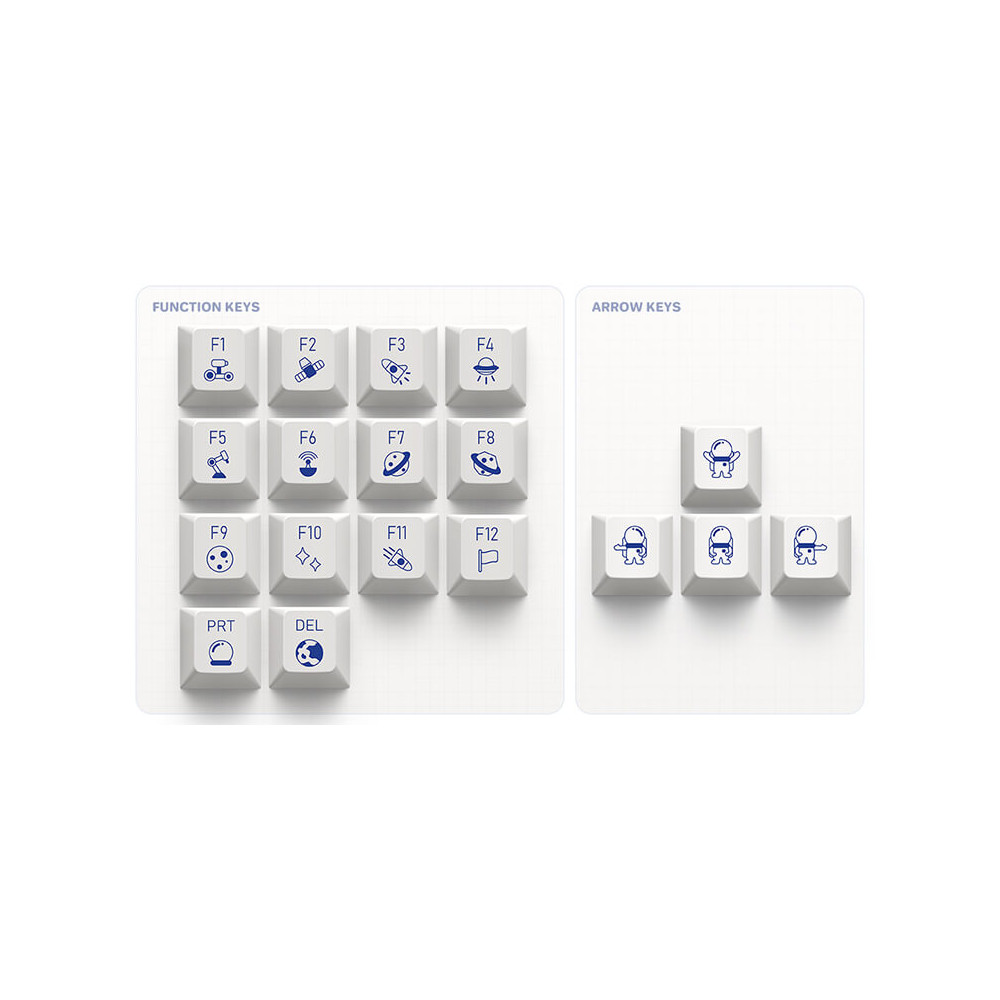

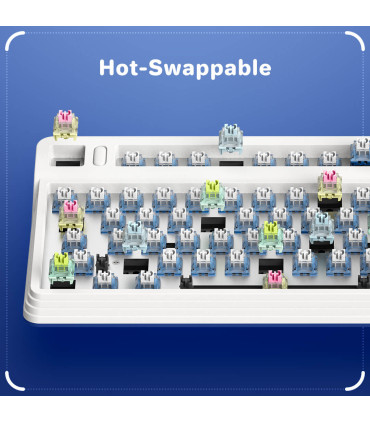

Three different modes are available for connecting to the keyboard: via USB-C cable, Bluetooth 5.1 or the 2.4 GHz USB receiver with its sub-1ms response. The rechargeable 4000 mAh battery runs for up to 3000 hours in Bluetooth mode with the backlight off. Bluetooth connectivity allows users to connect up to 3 devices to the keyboard at the same time. The iqunix A80 has a fully hot-swappable PCB, so you can easily swap out the switches and customize the keyboard according to your preference. The OG80 is compatible with macOS, hold FN+TAB for 5 seconds to switch between operating systems. It comes with a variety of interchangeable keycaps, four of which are designed for use with Mac systems. The high-quality keycaps made of PBT with a pleasant surface enable an excellent typing experience.
TTC Switch Options
IQUNIX has added new switch options from TTC, including Gold Pink and Speed Silver, as well as the usual Cherry MX Silent Red. The excellent TTC switches are all linear and pre-lubricated at the factory to increase smoothness and eliminate scratching and spring ping.
Supported OS: Windows10, Mac, iOS, Android
Accessories: USB Type-C cable, additional buttons for Mac layout, user manual, Unifying receiver, cleaning brush, keycap and switch remover
Specifications
- Product
- Mechanical keyboards
- Housing format
- 80% Keyboard
- Case Material
- ABS
- Housing color
- Blue
White
- Switch stem
- MX
- Switches
- TTC Silent Brown
- Stabilizers
- Cherry
- Hot-swappable
- Yes
- Physical Layout
- .ISO
- Language layout
- CH QWERTZ
- Number of buttons
- 84
- Keycap material
- PBT
- Keycap profile
- Cherry Profile
- Keycap color
- Blue
White
- Color keycap lettering
- Blue
White
- Translucent lettering
- No
- Labeling type
- Dye-Sub (dye-sublimation process)
- Signalling
- Wired
Wireless
- Connection
- 2.4GHz USB Receiver
Bluetooth
USB
- USB interface
- USB Type-C
- Bluetooth interface
- Bluetooth Version 5.0
- Bluetooth Multipairing
- up to 3 devices
- Polling Rate (Wireless Mode)
- 125 Hz (Bluetooth)
- Polling Rate (Wired Mode)
- 1000 Hz
- Polling Rate (2.4GHz)
- 1000 Hz
- Lighting
- RGB LED

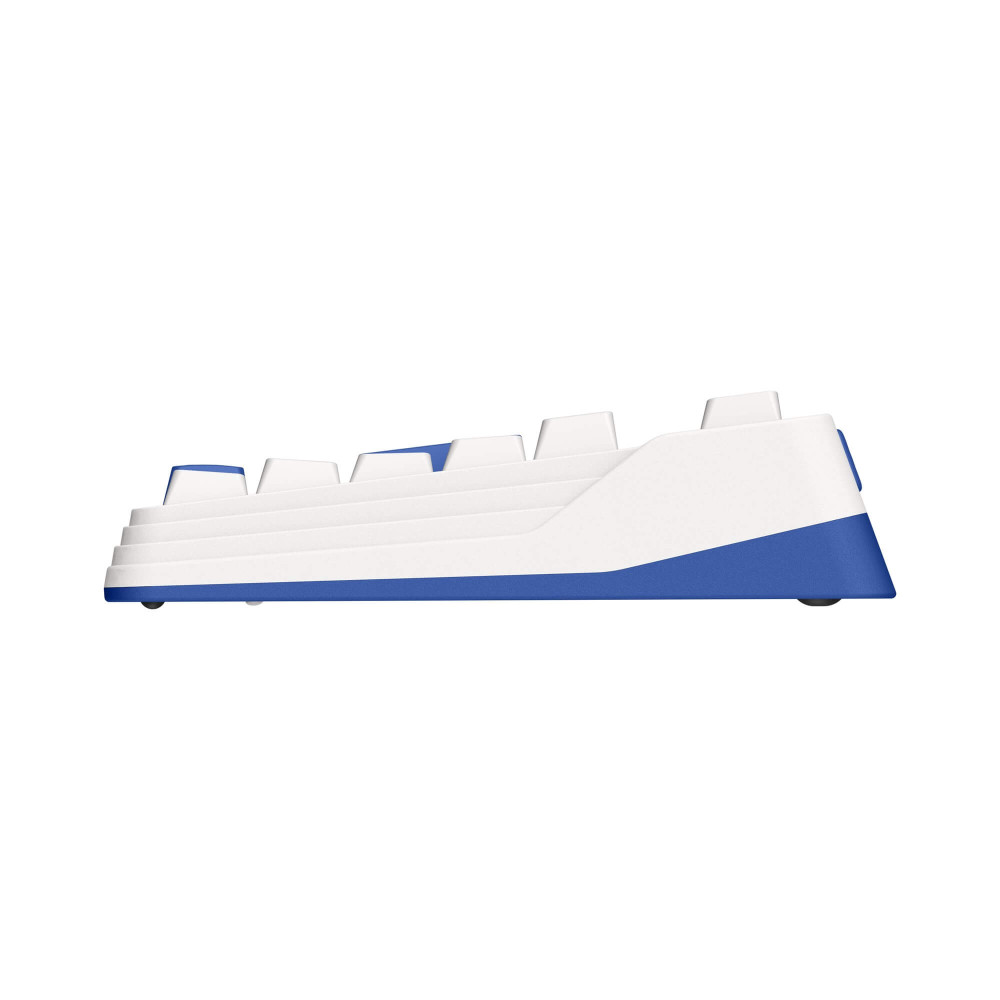

- Adjustment height/inclination
- 3 positions
- Cable length
- 1.5 m
- Cable duct
- In front
- Battery
- 4000mAh
- Operating systems
- Android
Ios
Windows
macOS
- NKRO / Anti Ghosting
- Full anti-ghosting with N-key rollover via USB, 6KRO in wireless mode
- Keyboard dimensions (w x d x h)
- 325 x 162 x 45 mm
- Keyboard Weight
- 1118 g
- Scope of delivery
- 2.4GHz Receiver (USB-A)
Cleaning Brush
Dust cover
Fancy keycaps
Keyboard
Keycap/Switch Puller
Keys for Mac layout
USB-C charging cable (USB-A to USB-C)
additional stabilizers and screws
- User guide
- English
